Rheem

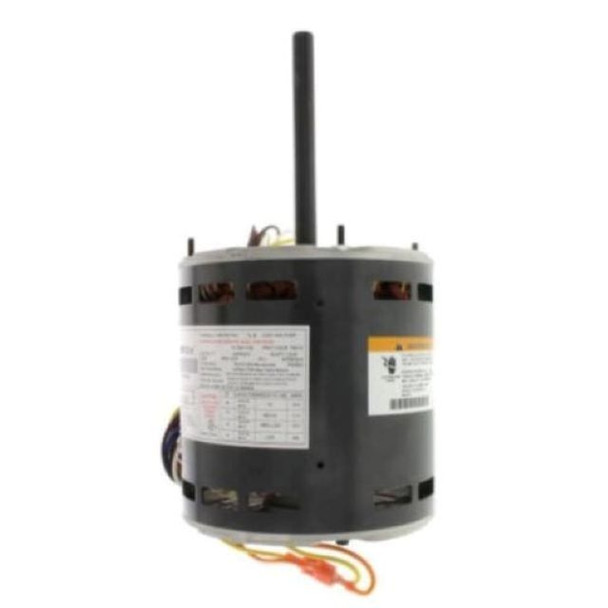

51-23017-42 Rheem Furnace Blower Motor
- SKU:
- A554829
- MPN:
- 51-23017-42
- Availability:
- Usually ships within 24 hours.
Frequently bought together:
Description
Rheem Motor, Blower, 120 Volt, 60HZ, 1/4 - 3/4HP, 1PH, 1075 RPM, 4 Speed
1/4 - 3/4 HP
1 Phase
4 Speed
120V
1075 RPM
Application Blower
Bearing Type Ball
Drive Type Direct Drive
FLA at 120V (A) 9.50
Frame Size 48
Frequency (Hz) 60
High Speed (RPM) 1075
HP 1/4 to 3/4
Input Voltage (V) 120
Keyed/Flat Shaft Length (in.) 4
Motor Body Diameter (in.) 5-5/8
Motor Body Length (in.) 5-13/16
Mounting Shell-band | Shell-screw
No. of Phases 1
No. of Speeds 4
Overall Motor Length (in.) 10-13/16
Overall Shaft Length (in.) 5
Rotation Direction (OSE) Reversible
Run Capacitor (uF/V) 10/370, 12.5/370, or 15/370
Shaft Diameter (in.) 1/2
All returned items must be in new and re-saleable condition; no refunds or exchanges will be given if the item is not in the same condition as when it was sold
If the part does not match the part in your appliance DO NOT INSTALL. will not be refundable once installed. Please contact us.
Warranty Information
90 days warranty from the date of purchase.
All Warranties require the model and serial numbers of the appliance.
