Supco

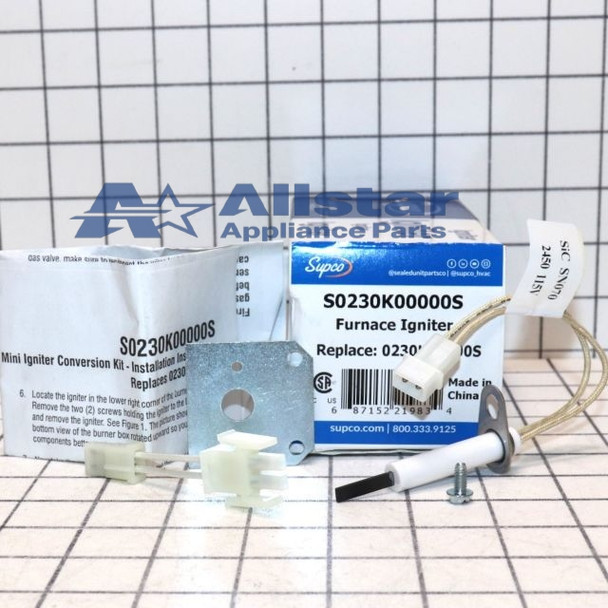

S0230K00000S Supco Furnace Ignitor
- SKU:
- 6035881
- MPN:
- S0230K00000S
- Availability:
- Usually ships within 24 hours.
Frequently bought together:
Description
Replaces Goodman® 0230K00000S , 20165703
18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design
Supco® mini igniters offer an efficient , stronger, reliable hot surface Silicon nitride design
Superior gas lighting ability
Igniter Material: Silicon Nitride
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Resistance: 34 - 64 Ohms
Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Warranty Information
90 days warranty from the date of purchase.
All Warranties require the model and serial numbers of the appliance.
