Supco

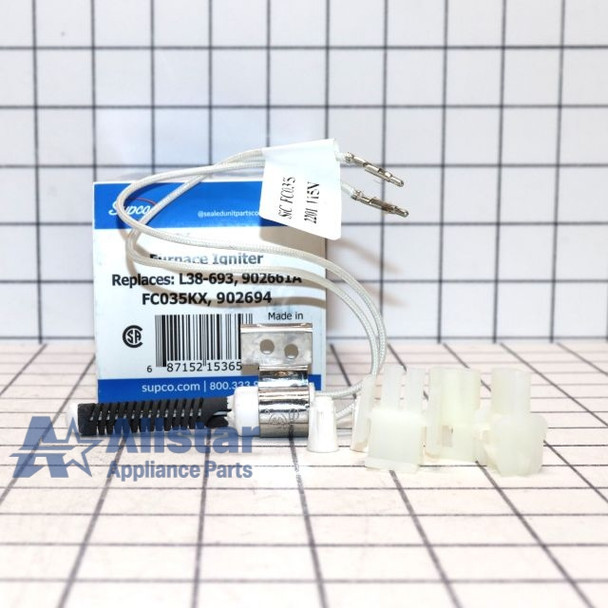

SIG101 Supco Universal Furnace Ignitor
- SKU:
- R841248
- MPN:
- SIG101
- Availability:
- Usually ships within 24 hours.
Frequently bought together:
Description
Universal Furnace Ignitor
SIG101 replaces 902661A , 902661 , 902694
18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniters
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
Superior gas lighting ability
Time to temperature: <17 seconds @ 115 +/? 1.0 VAC
Igniter Material : Silicon Carbide
Steady State Current: 3.0 to 3.6 Amps Maximum @ 115 Volts
Resistance: 50 to 1100 Ohms
Minimum Temperature: 1800°F / 980°C @ 98 Volts
Maximum Temperature : 3100°F / 1705°C @ 132 Volts
All returned items must be in new and re-saleable condition; no refunds or exchanges will be given if the item is not in the same condition as when it was sold
If the part does not match the part in your appliance DO NOT INSTALL. will not be refundable once installed. Please contact us.
Warranty Information
90 days warranty from the date of purchase.
All Warranties require the model and serial numbers of the appliance.
