Supco
SSN0145 Supco Furnace Hot Surface Ignitor
- SKU:
- 726451L
- MPN:
- SSN0145
- Availability:
- Usually ships within 24 hours.
Frequently bought together:
Description

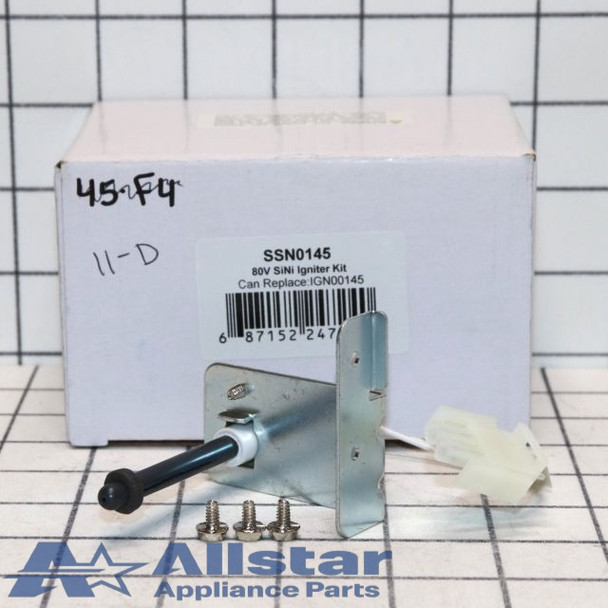

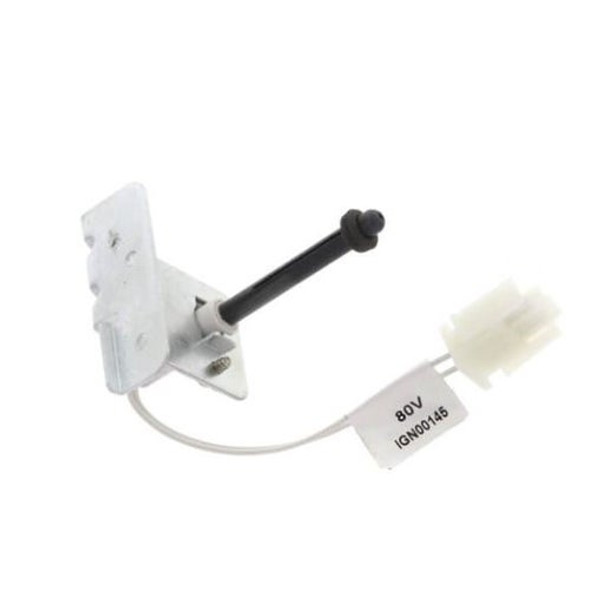

Furnace Hot Surface Ignitor 80V
Hot Surface Ignitor
The ultimate upgrade made from Silicon Nitride, robust and durable. This 80 volt direct drop in upgrade replaces Trane® IGN00145
Features/Benefits
Drop-in Replacement
Easy fit
See Cross Reference tab for additional numbers
Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride
Replaces part numbers:
IGN-0145
IGN00145
IG00145N
Trane IGN00104
Trane IGN00117
White-Rodgers 768A-815
Warranty Information
90 days warranty from the date of purchase.
All Warranties require the model and serial numbers of the appliance.
