Supco

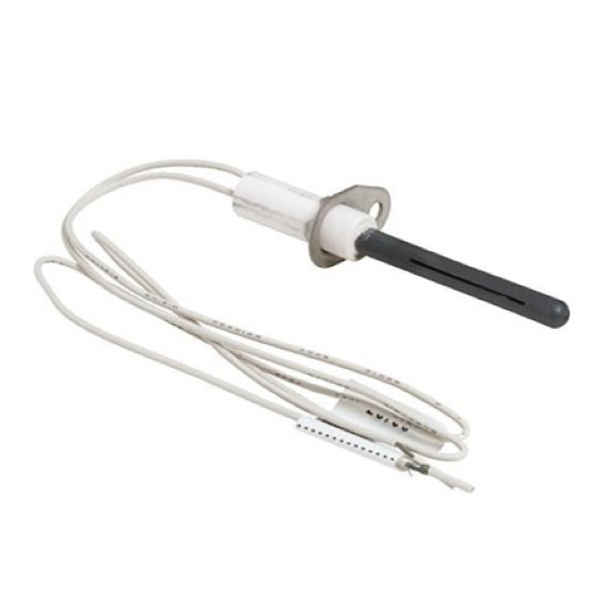

SSN2000 Supco Universal Furnace Ignitor
- SKU:
- 9231712
- MPN:
- SSN2000
- Availability:
- Usually ships within 24 hours.
Frequently bought together:
Description
Supco Universal round silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters
Specifications:
Wire Length: 15.5 Inches
Probe Length from Bracket: 2.25 Inches
Igniter Material: Silicon_Nitride
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Temperature @ 120V +/- 5V: 2156°F / 1180°C
Temperature @ 102V +/-5V: 1976°F / 1080°C
Cold Resistance: 9 to 17 Ohms
Rated Voltage: 120V +10% -15%, 50/60 Hz
Features/Benefits
18 gauge copper high temperature fiberglass insulated lead wires
Cross Referance:
American Appliance: 271B
American Road Equip: 201W
Arcoaire: 1096048
Carrier Corp: 1380680
Armstrong Air: 38322B001
Carlin: 87197S, LH33ZS001A, LH33ZS002
Clare Bros: C238, C242
Coleman: 1474-051, 174-052
Comfortmaker: 1096048
Comfort Zone: 150114-04-01
Detroit Radiator: 201D, 20015201
DMO Industries: 20834
Dornback Furnace: 271W
Ducane: 20015201
Enerco Tech: 10399
Evcon: 1474-051, 1474-052
Goodman: 10401009, B1401018S
HB Smith: 50018
Heil: 1096048
Honeywell: Q4100C9040/U
Hupp Industries: 9050
ICP: 1009604, 1096048, 3200618
Igniters Direct: HSIURK120V, FC007
LB White: 120-07549
Majestic: 75-92-104 75-92-105
Mars: 67930, 67931, 67932
Metzger: 201W
Mor-Flo: 3200618, 3210401, 3200618
Nordyne: 105141000, 632-0770, 632-0880, 902661, 902694, 903110, FC007
Norton: 201, 201D, 201J, 201K, 201L, 201M, 201N, 201R, 201W, 201Y, 271, 271D, 271M, 271N ,271NM, 271P, 271W, 271Y
Perfection Schwank: 108803-G1
Raypack: 600915
Rheem: 62821-001, 62-22868-82, 62-22868-93
Roberts Gordon: 90434300, 90436600
Robertshaw: 41-402, 41-403, 41-404, 41-405, 41-406, 41-407, 41-408, 41-409, 41-410,41-411, 41-412, 41-413, 41-414, 41-801N
Snyder General: Tempstar 380654, 1380672, 1380680
Superior Fireplace: 94851
Tempstar: 1096048, 1148245
Trane: 340039P01, B138196P01, B144676P01, B144676P02, B340039P01, IGN21, IGN23, IGN26, IGN30, IGN34
Viessman: 9302-094
Wayne Home Equip: 62-22441-01, 62-22441-02
Weil McLain: 511-330-139, 511-330-190, 511-330-193White LB Co: 120-07549
White Rodgers: 21D64-2, 767A-301, 767A-303, 767A-306, 767A-310, 767A-311, 767A-350, 767A-353, 767A-354, 767A-357, 767A-361, 767A-364, 767A-365, 767A-366, 767A-370, 767A-371, 767A-372, 767A-373, 767A-374, 767A-375, 767A-376, 767A-377, 767A-382, 767A-383, 767A-384, F767A-357, F767-A361, F767-A365, F767-A366
Williamson: 9050
York Intl: 025-27766-000, 025-27774-000, 373-05342-700, 025-29043-000, 025-29050-000, 025-32625-000, 025-32626-000, 025-33241-000, 373-05342-700, 473-12509-001
LE-MARK: 5500005129
If the part does not match the part in your appliance DO NOT INSTALL. will not be refundable once installed. Please contact us.
Warranty Information
90 days warranty from the date of purchase.
All Warranties require the model and serial numbers of the appliance.
