Honeywell

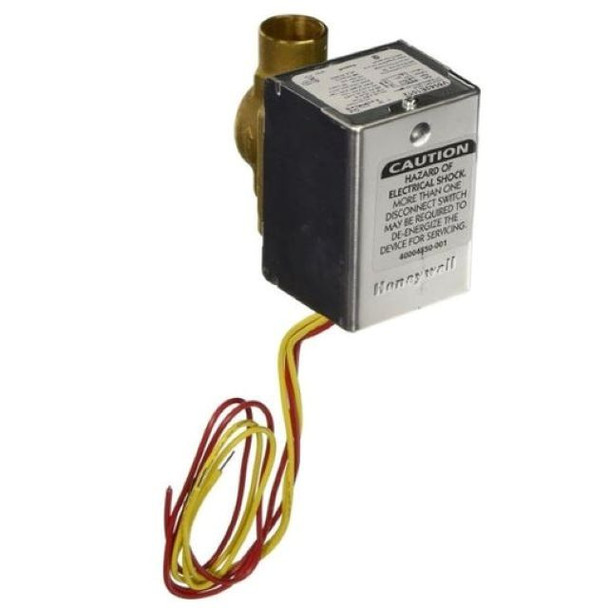

V8043E1012 Honeywell Furnace 3/4" Zone Valve

(No reviews yet) Write a Review

SKU:: G783700
UPC:
MPN:: V8043E1012
Availability:: Usually ships within 24 hours.

$135.99

Current Stock:

Quantity:

Frequently bought together:

Description
Warranty Information
0 Reviews

Description

Honeywell Furnace 3/4" Zone Valve

Pipe Size (DN): DN20

Fluid Temperature Range: 50 F to 200 F

Electrical Connections: 18" leads

Power Consumption: 7.7 VA

Nominal Timing: 15 sec

Valve Action: Spring return to close

Dimensions: 4" high x 3-1/2" wide x 2-3/8" deep

Auxiliary End Switch: SPST

End Switch Rating: 50 VA pilot duty @ 24 V

Static Pressure (psi): 125 psi

Materials (Body): Brass

Materials (Stem): Stainless Steel

Materials (Ball Plug): Buna-N (NBR) Rubber Ball

Materials (Packing O-rings): EPDM O-rings

Voltage: 24V

Manual Opener: Yes

Tradeline Value: Tradeline

All returned items must be in new and re-saleable condition; no refunds or exchanges will be given if the item is not in the same condition as when it was sold

If the part does not match the part in your appliance DO NOT INSTALL. will not be refundable once installed. Please contact us.

View AllClose

Warranty Information

90 days warranty from the date of purchase. All Warranties require the model and serial numbers of the appliance.

View AllClose

0 Reviews

View AllClose
