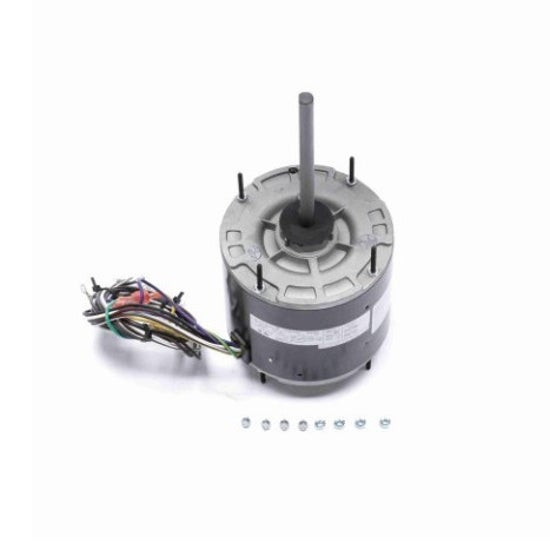

EM3459F Fasco Air Conditioner Condenser Fan Motor - 1/3-1/8 HP

Air Conditioner Condenser Fan Motor - 1/3-1/8 HP

Pro-E Series® - Condenser Fan Motor

5.6" Diameter - 48 Frame

Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)

Thermally Protected

Totally Enclosed Air Over

Class F Insulation, 70°C Ambient

Ball Bearing

1/2" Diameter Shaft with Double Flat

48" Leads

Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Phase:

1

Output HP:

1/3-1/8 Hp

Output KW:

0.25 kW

Voltage:

208-230 V

Speed:

825 rpm

Service Factor:

1

Frame:

48Y

Enclosure:

Totally Enclosed Air Over

Thermal Protection:

Automatic

Ambient Temperature:

70 °C

Frequency:

60 Hz

Current:

1.8-2.0 A

Duty:

Air Over

Insulation Class:

F

UL:

Recognized

CSA:

Y

CE:

N

Number of Speeds:

1
